Personal Rig Update 2012 Part 7 - Test Fitting Stripped Parts & Sleeving Progress Linus Tech Tips
0 up · 0 down · 0 ratings
Description
My parts are back from having the paint stripped and this video is about the next stage of planning that I have to do. Most of the upcoming work will be test fitting things to get everything perfect before I send all my gear away to be painted and put it back together again once it gets back.

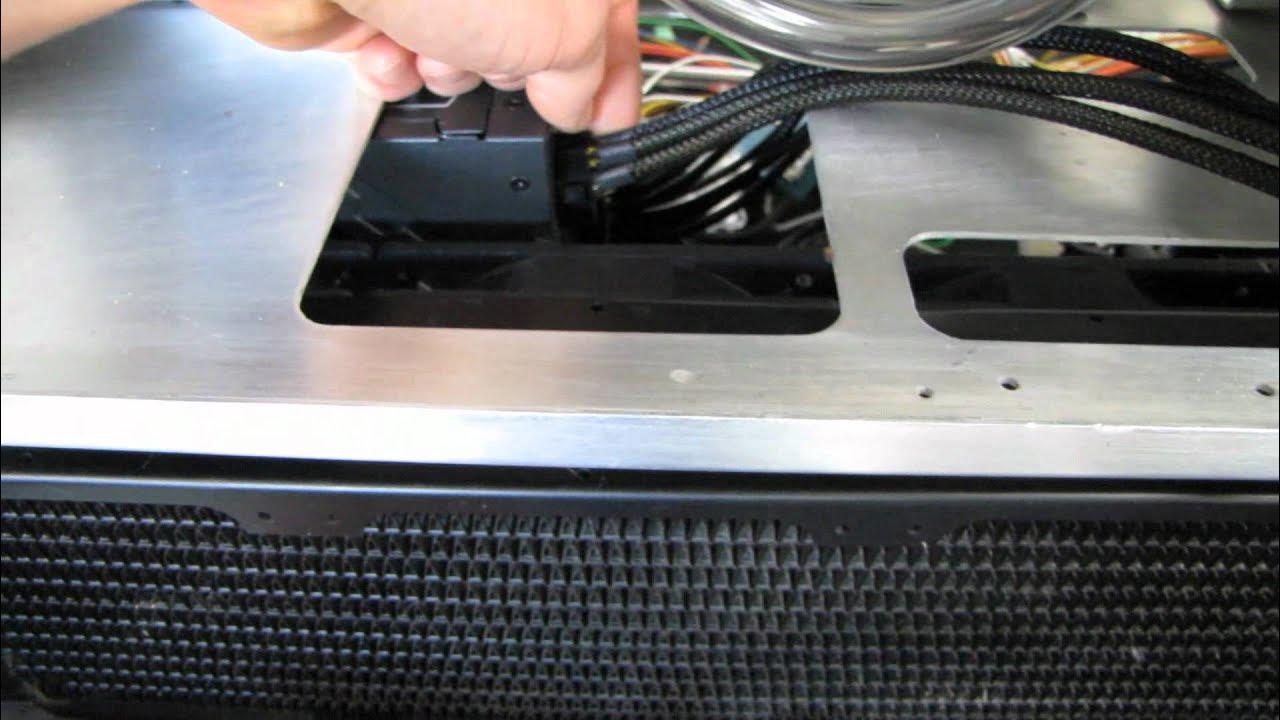

In this Personal Rig Update from 2012, the creator details the ongoing sleeving work and the meticulous planning required before sending parts out for powder coating. He starts by highlighting the sleeving progress on the 24-pin cable and mentions an extra heat shrink piece that will be added at the far end once the sleeving is completed. He then discusses the eight-pin cable routing near the motherboard and showcases how two cables per sleeve are being laid out, a technique he believes gives a sharp, clean appearance. The video pivots to the T Virus Reservoir integration, with demonstrations of fittings being tested and positioned to fit within the build while maintaining accessibility. He continues by assessing modifications to the TJ07 case, planning cuts and widenings to accommodate power, SATA, and eight-pin routing, and he emphasizes the importance of correct cable management to avoid clutter when the system is finally assembled. Finally, the host outlines routing strategies for water cooling, including positioning fittings to prevent tubing crossings, bleeding considerations, and the need to drill new holes for front-panel ports. He weighs the look of the final exterior, the potential powder coating of the outer shell, and the decision to keep tubing visually clean, while also planning the final layout for the drives and cooling loop, and acknowledging that there is still significant prep work before the project can move forward. The update closes with a nod to the community, inviting feedback on tubing placement and confirming that the project will continue to evolve as more components are prepared for powder coating and reassembly, culminating in a promise of further updates. Overall, the video provides an in-depth, process-focused look at prioritizing cable management, component fitment, and aesthetic decisions in a high-end custom PC build, with emphasis on preparing parts for finishing and avoiding premature assembly before paint and coatings are complete.
Topics · technology · hardware_modification · custom_pc_builds · computer_hardware
Questions answered
- What indicates the sleeving approach for the motherboard cables in this update?
- Two cables per sleeve are used for the eight pin and related power cables, intended to look sharp and organized when bound together.
- What is the plan for accommodating the tubing and bleed in the water cooling loop?
- Fittings are planned to avoid tubing crossings, with the tube runs designed to facilitate easier bleeding and routing, including a front-mounted 90-degree fitting and careful hole placement.
- How is the project approaching the exterior finish and case preparation before powder coating?
- Decisions are being made about whether to powder coat the whole shell or keep some external finish; components will be adjusted or cut as needed to ensure a cohesive look after finishing.
