Gigabyte Z77X-UD5H Z77 Ivy Bridge Motherboard Unboxing & First Look Linus Tech Tips
0 up · 0 down · 0 ratings
Description
CA: ncix.com US: us.ncix.com Gigabyte has introduced something really cool with their Z77 series boards. An evolutionary step forward in their Ultra Durable technology: Ultra Durable 4. UD4 brings all of the improvements from previous generations like the 2oz copper PCB that facilitate stability and cooling and adds an all-new glass fabric PC design that is actually water resistant for PC users who live in humid climates!!

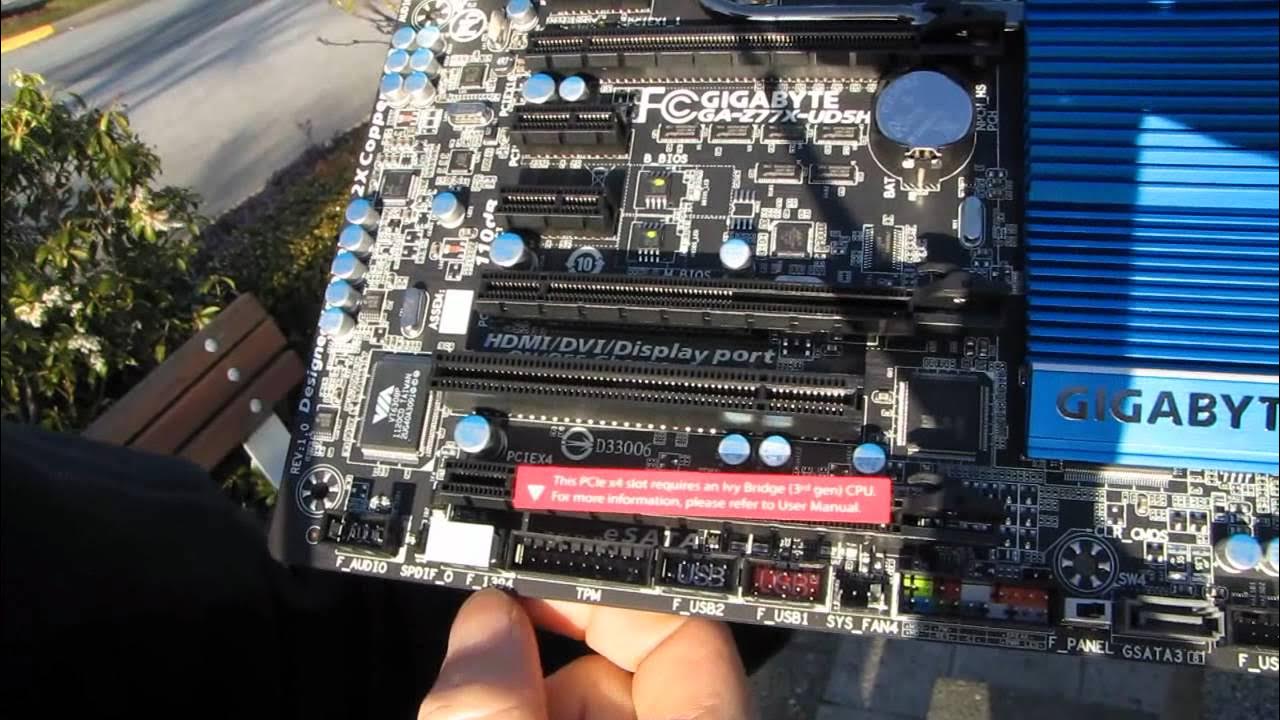

Linus Tech Tips walks through a hands-on unboxing and first look at the Gigabyte Z77X-UD5H Z77 Ivy Bridge motherboard. The video opens with the box contents and accessory bundle, highlighting the two right-angle SATA cables, USB 3.0 front panel, and the included driver disc and manuals. Linus explains the motherboard’s design philosophy, including 3D BIOS with Dual UEFI, 3D power, and all-digital power delivery, emphasizing how the board aims to simplify configuration and monitoring for enthusiasts. He then reveals the board itself, pointing out the large VRM heatsinks, the 8-pin CPU power connector, the 5 PWM fan headers, and the integrated voltage checkpoints for easy multimeter checks. The back I/O and expansion slot layout are discussed in detail, with notes on PCIe 3.0 support, SLI/CrossFire readiness, and the implications of PCIe lane configurations depending on the Ivy Bridge CPU installed. The segment also touches on built-in features like Intel Smart Response Technology, onboard HDMI/DVI/DisplayPort with Virt MVP support, and the choice between Intel USB 3.0 and third-party USB controllers. Overall, Linus contextualizes the UD5H as a strong mid-to-upper tier Z77 board, balancing feature set, overclocking potential, and user accessibility, while also teasing deeper dives into overclocking and BIOS usage in future videos. The closing remarks encourage viewers to subscribe for more unboxings and computer hardware content, reiterating the value of all-digital power delivery for CPU, memory, and integrated graphics.
Topics · technology · hardware · unboxing · review · computers
Questions answered
- Welke kenmerken van de Gigabyte Z77X-UD5H worden in deze video benadrukt?
- De video belicht onder meer de Dual UEFI 3D BIOS, 3D Power digitale voeding, de VRM-koelers met warmtegeleiding, de 8-pins CPU- voeding, meerdere PWM-fans headers, geïntegreerde prestaties voor SLI/CrossFire, Intel Smart Response Technologie, en de uitgebreide I/O achterkant met meerdere poorten en opties voor videouitgangen.
- Wat is er uniek aan de PCIe-connectoren en lanes zoals besproken in de video?
- De video bespreekt dat PCIe 3.0 op dit platform geschikt is voor snelle grafische kaarten, met een combinatie van 16x, 8x 8x bij dual-card setups en een 4x slot vereist Ivy Bridge voor maximale bandbreedte; de tekst geeft aan dat PCIe 3.0 dezelfde bandbreedte heeft als PCIe 2.0 x16, waardoor er geen bottleneck verwacht hoeft te worden bij de juiste CPU.
